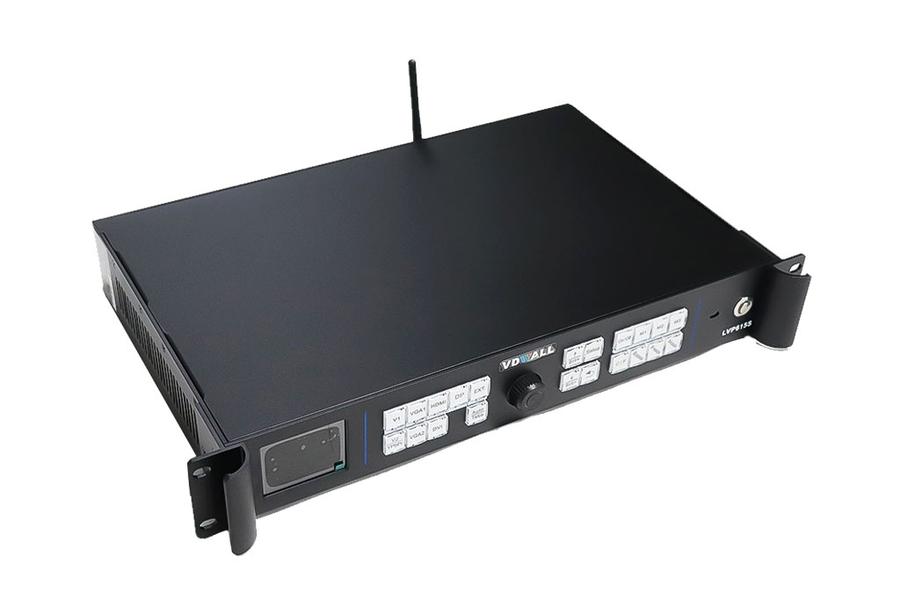

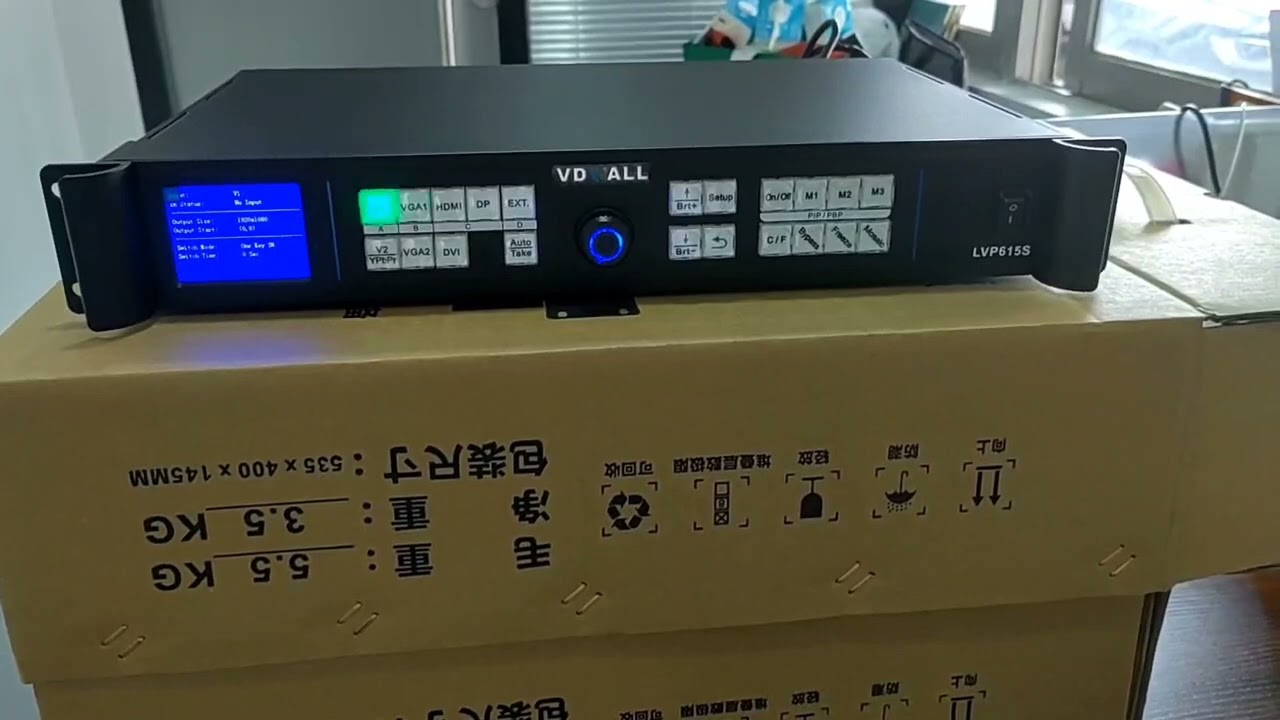

VDWall LVP615S LED Video Processor

LVP615 series LED HD Video Processor wireless WI-FI control&remote control pip/pbp,text overlay synchronic Multi-unit In Parallel.

1. New generation Faroudja® Real Color® professional LED video processor,10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
2.SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
3.Twosignalswitching ways：one keyswitchandPre.+Takeswitch
4. 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
5. Inputsignalhotsparefunctiontoensureoutputmorestable.
6. Custominput DVIEDIDtorealizeperfectpixeltopixeldisplay.
7.Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
8. DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.
9.Avariety ofcontrolmethods：wirelessWIFI、 IP/LAN、 frontpanelbutton、 infraredremote control、PC software，Ipad、mobile phone terminaland etc..Flexibleoperation.
10.2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
11. Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
12. 24/7application，highreliabilityandstability

LVP615 series product model description

*LVP615： Extend interface optional 1×CVBS
*LVP615S：Extend interface optional 1×SDI/HD-SDI/3G-SDI
*LVP615D：Extend interface optional 1×VGA/DVI/HDMI
*LVP615U：Extend interface optional 1×Wi-Fi+2×USB

Hardware connection diagram

Product dimensions

Further Information:

LVP615S-user-manual_V1.2_20190426
