Novastar VX600 LED Controller

The VX600 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x DVI (IN & LOOP)
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)

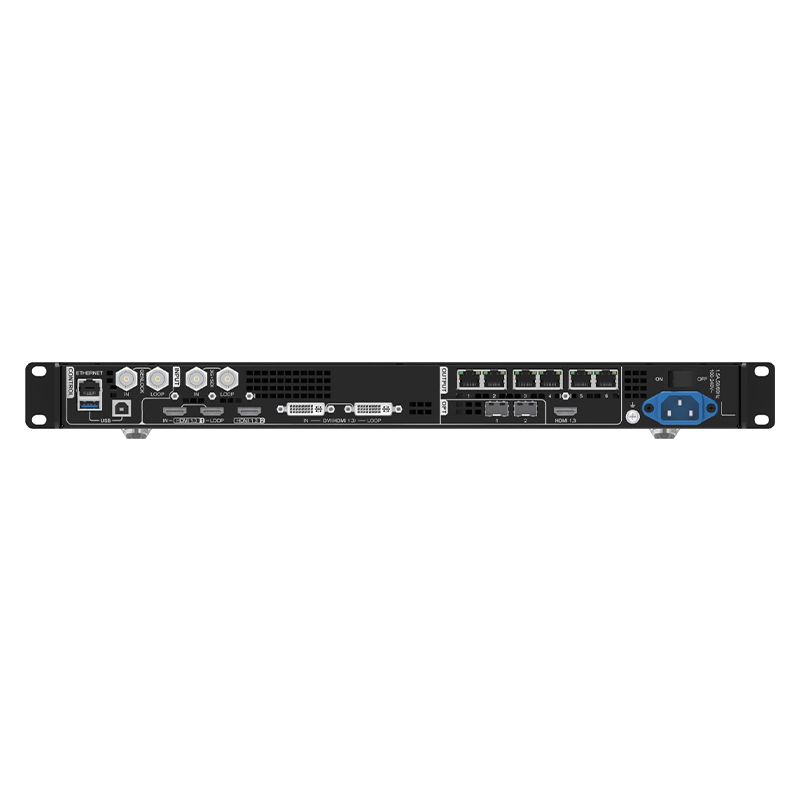

Output connectors
− 6x Gigabit Ethernet ports
Self-adaptive OPT 1 for either video input or sending card output
Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI input source
− Audio output via a multifunction card
− Output volume adjustment supported
Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
3x layers
− Adjustable layer size and position
− Adjustable layer priority
Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
Powerful video processing
− Based on SuperView III image quality processing technologies to provide stepless output scaling
− One-click full screen display
− Free input cropping
Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one button
Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
− Backup between input sources

Specifications

Further Information:

VX600 All-in-One Controller Specifications-V1.0.0
