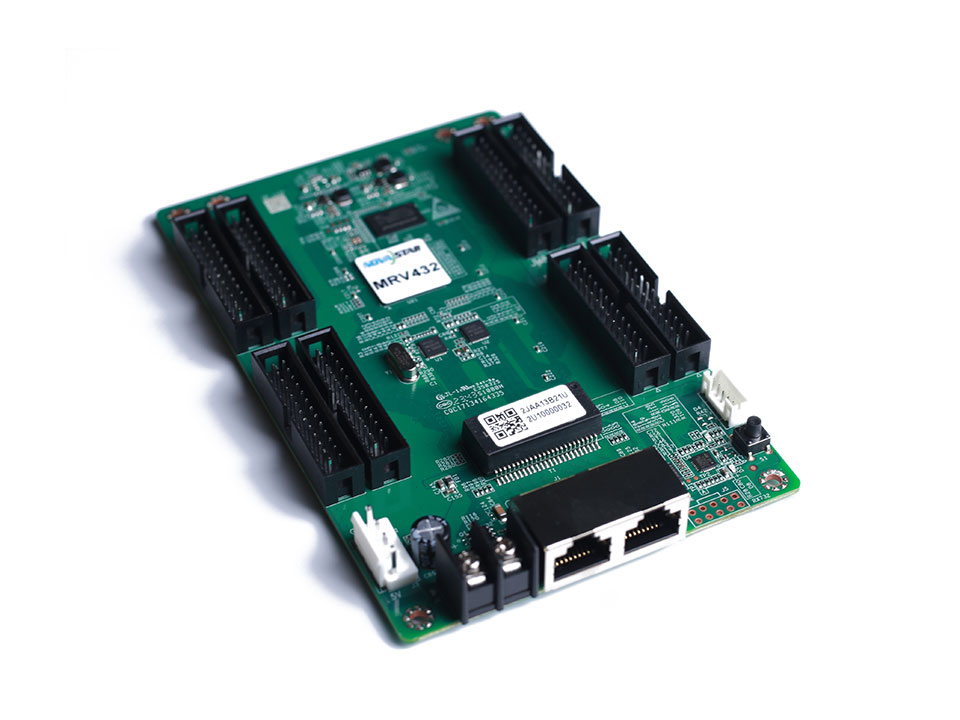

Novastar MRV432 led Receiver Card

Novastar MRV432 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*512 pixels .
Supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of MRV432 to communicate with 4 standard hub320 interfaces, which has high stability and supports up to 24 sets of RGB Parallel Data Group, Use of words in a variety of field environments， and with Brightness adjust.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 91.5mm x 145.7mm x 18.4mm
Weight: 93g
