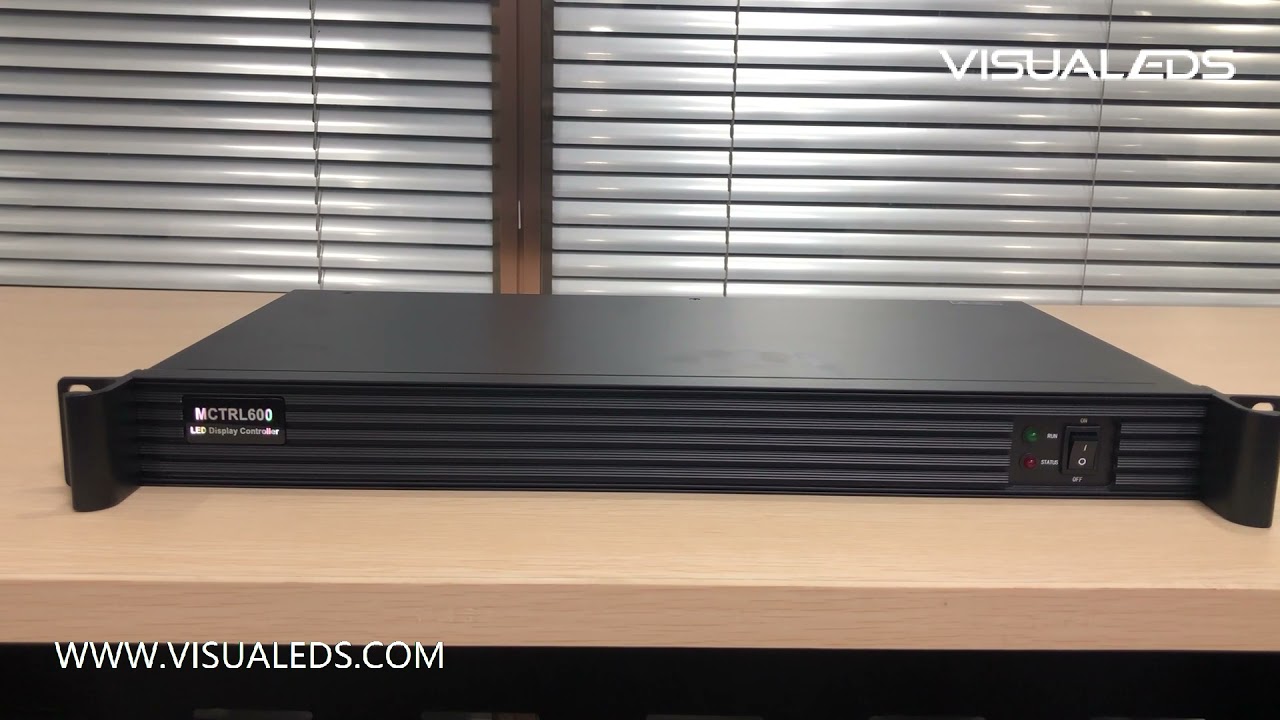

MCTRL600 LED sending Box Novastar

The MCTRL600 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL600 supports input resolutions up to 1920×1200@60Hz.

The MCTRL600 communicates with PC via type-B USB port. Multiple MCTRL600 units can be cascaded via UART port.
As a highly cost-effective controller, the MCTRL600 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Novastar MCTRL600 LED Display Controller
12-bit / 10-bit HDMI input, DVI input.

HDMI / external audio input.

HDCP Blu-Ray input.

​Resolutions supported: (8-bit)

2048×1152@60Hz​,

1920×1200@60Hz,

2560× 960@60Hz.

Customized resolution supported, maximum width/height up to 3840 pixels.

​1 light sensor interface, for auto brightness adjustment.

Cascading supported.

Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.

Certification: CE, RoHS, FCC, EAC, IC.

Further Information:

MCTRL600-LED-Display-Controller-Specifications-V2.3.0
