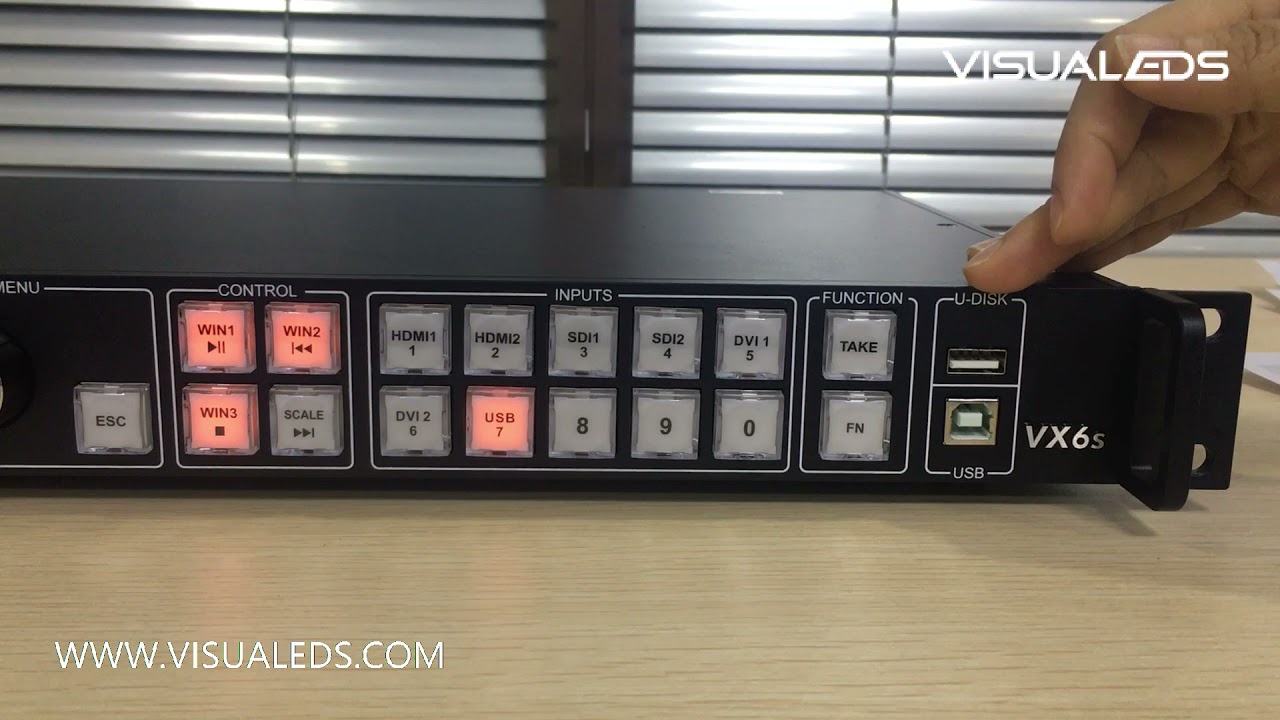

Novastar VX6S LED Video Controller

The VX6s is an all-in-one controller that integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs.

How to connect Novastar VX6S LED Controller

Features

    7 input connectors: 2 × 3G-SDI, 2 × HDMI 1.3, 2 × DVI, 1 × DVI+DVI LOOP and 1 × USB playback.
 Supports 3 × windows.
 Supports quick and advanced screen configurations.
 Switches the PVW to PGM by pressing only the TAKE button in the switcher mode.
 Supports adjustment of input resolutions.
 Supports device redundancy settings.
 The maximum loading capacity of video output is 3.9 million pixels.
 Supports brightness adjustment of the screen loaded by the VX6s.
 Multiple VX6s units can be cascaded.
 Supports auto fit function of windows.
 The maximum video output width and height are both 4096 pixels.
 A total of 16 user presets can be created and saved as templates. The templates can be used directly and conveniently by pressing the number buttons on the front panel.
 Any HDMI or DVI input source can be used as the synchronization signal to achieve vertical synchronization of outputs of multiple devices.
 Features an intuitive OLED screen and clear button indicator prompt in the front panel, simplifying system control and operation.

VX4S LED Video processor Working Diagram

Specifications

Further Information:

VX6s-All-in-One-Controller-Specifications-V1.3.0

VX6s-All-in-One-Controller-User-Manual-V1.3.0
