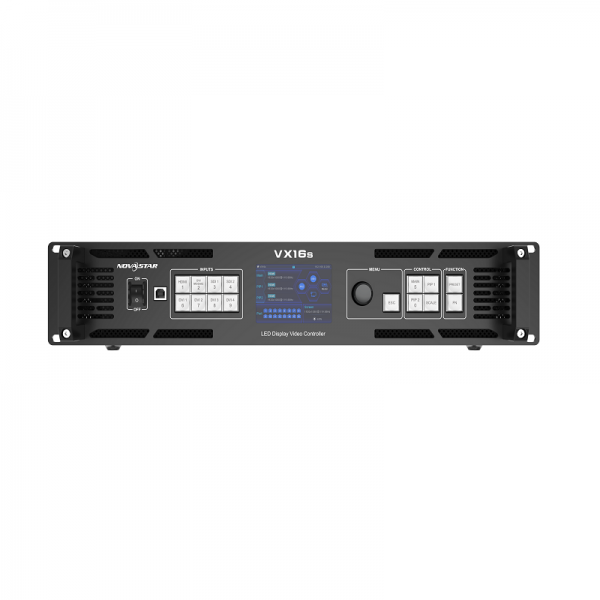

LED Video Controller Novastar VX16S

The VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.

The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.

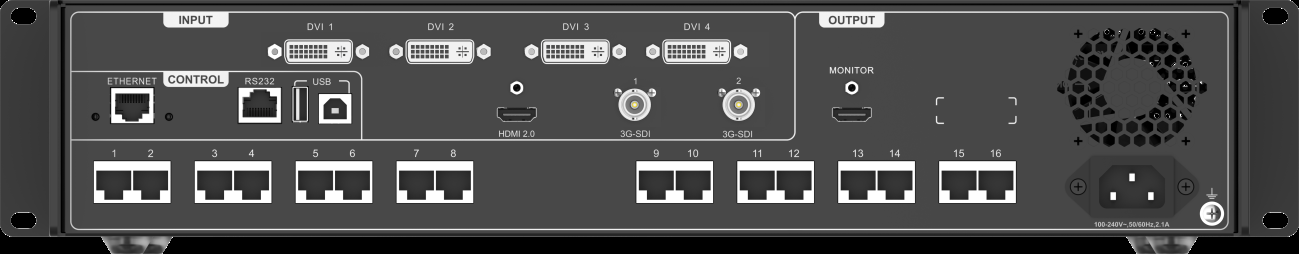

√ Industry-standard input connectors
− 2x 3G-SDI
− 1x HDMI 2.0
− 4x SL-DVI
√ 16 Ethernet output ports load up to 10,400,000 pixels.
√ 3 independent layers
− 1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)
− Adjustable layer priorities
√ DVI mosaic
   Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.
√ Decimal frame rate supported
Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.
√  3D
Supports 3D display effect on the LED screen.The device output capacity will be halved after the 3D function is enabled.
√  Personalized image scaling
Three scaling options are pixel-to-pixel, full screen and custom scaling.
√  Image mosaic
Up to 4 devices can be linked to load a super large screen when used together with the video distributor.
√  Easy device operation and control through VCan
Up to 10 presets can be saved for future use.
√  EDID management
Custom EDID and standard EDID supported
√  Device backup design

Novastar VX16s LED Video processor Working Diagram

Further Information:

VX16s-All-in-One-Controller-Specifications-V1.0.0

VX16s-All-in-One-Controller-User-Manual-V1.0.0
