A8S LED Receiving Card Novastar

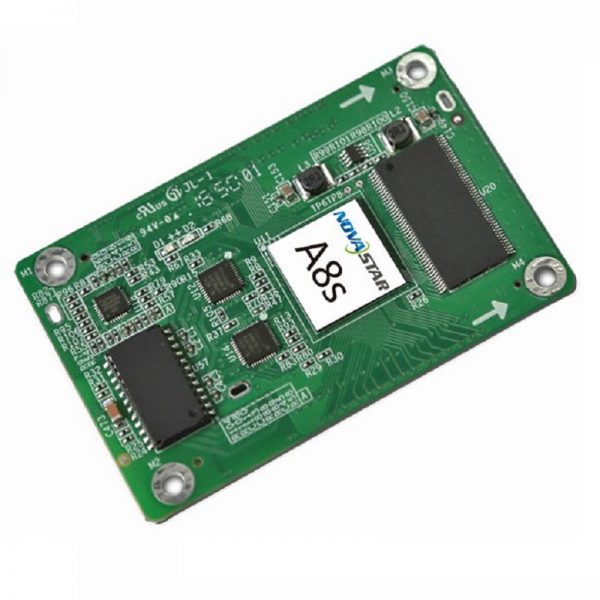

The A8s is a high-end small receiving card developed by NovaStar. A single A8s loads up to 512×256 pixels (PWMIC). Adopting the exclusive Image Booster Engine technology of NovaStar, the A8s can precisely calibrate the colorgamut and grayscale of the screen, and improve the grayscale by 64 times. It also supports the pixel level brightness and chroma calibration, individual Gamma adjustment for RGB, low latency, 3D and HDR functions, greatly improving the brightness, grayscale and color performance from every aspect and offering users an ultimate visual experience with a uniform, smooth and lifelike image.

The A8s uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A8s has improved electromagnetic compatibility and is suitable to various on-site setups that have high requirements.

A5s Plus/A7s Plus /A8s / A10s Plus

Further Information:

A8s Receiving Card Specifications-V2.1.1
