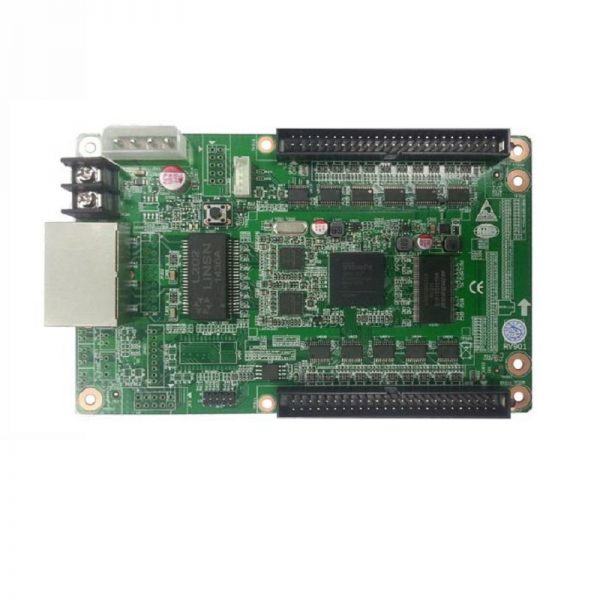

Linsn LED Receiving Card RV901T /RV901H

Linsn RV901T RV901H LED display receiver card

Description of Linsn RV901H
RV901is the upgrade product for RV801 and RV801D, fully compatible with RV801, supports all features of RV801.

Compared with the RV801 to add the following features
1. supports HDMI 12 bit color input (need the sending cards TS901)
2. a 18-bit signal processing, maximum 18-bit (260,000) gray for red, green and blue
3. single card maximum support 1024X256 pixels, 1024-level single point of color correction
4. supporting single card color space conversion
5. support RCG file read-back
6. support program copy
7. support hot backup for dual receiver card, used for very more performance LED screen
8. support fault detection supports pixel (IC support required)
9. supports the network cable error test
10. supports the ribbon cable fault detection
11. supports the cabinet door monitoring
12. two fan speed monitoring
13. three-way voltage monitoring, system, two-way external enclosure power supply
14. temperature monitor
15. humidity control (to be purchased separately and humidity sensor)
16. smoke monitoring (to be purchased separately smoke module)
17. Passed the EU CE-EMC standards

Description of Linsn RV901T
RV901/921/931 is upgraded from the 8th generation system RV801. Compared with RV801, RV901 has all functions
of RV801 and can replace RV801, besides, RV901 is added the following functionality:

1. support 12-bit HDMI colors input (required the 9th generation sending card)

2. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)

3. Single card maximum supports 1024X256 pixels

4. In line with EU standards CE-EMC

Further Information:

RV901T_Specification-V1.1

RV901H_Specification-V1.1
