1. Huidu R502 LED Display Cascading Receiving Card 256×256 Features: HD-R502 no need HUB, and been have 16PORT HUB75B. Functions same with HD-R500
2. Huidu R502 LED Display Cascading Receiving Card 256×256 Mainly parameter：
|
Working ways |
Used in Sending card HD-A601/602/603 Series, HD-C10/C30series, HD-A30/A30+ Series |
|
Suitable Modules types |
Indoor & outdoor full-color & single/dual color module Support MBI5041/5042、MBI5050、MY9221、MY9268 etc PWM |
|
Scan mode |
Static, 1-32 scan randomly |
|
Communication |
Gigabit Network |
|
1pcs of receiving card support areas |
Outdoor: 256W*256H Indoor: 512W*128H The highest height is 512H.The longest width 512W |
|
Receiving cards sequence |
Sequence randomly, and it can recognize the sequence by software or set up sequence by hand. Receiving card connected speed by nanoseconds |
|
Gray scale |
0-65536 |
|
Smart set |
Smart set by few simple steps, through display routine setting ,it could suit almost different PCB routine |
|
Play contents |
Play video、animation、picture、text、excel、PPT、time、counter etc |
|
Test functions |
It have self test button, could test modes of red、green、blue、white、gray、oblique line、grid、spots etc |
|
Blanking Circuit |
Support |
|
Communication distance |
150m use CAT5E OR CAT6 Cable (From Sending card to Receiving card) |
|
Port |
2pin 5V Power x1,Gigabit portX2，75B HUB portx16 |
|
Voltage |
4V-6V |
|
Working temperature |
40℃–85℃ |

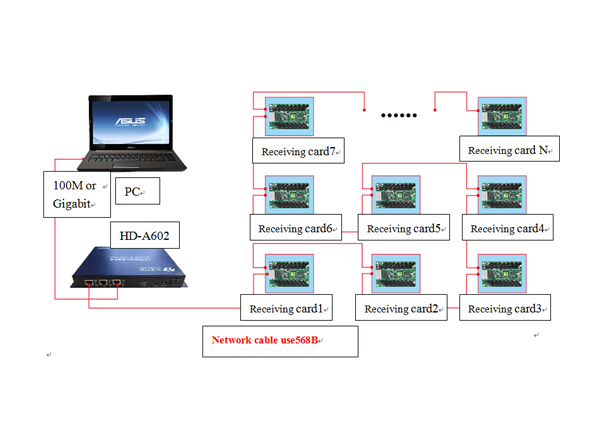

3. Connected ways（Here used HD-A602 Sending card）

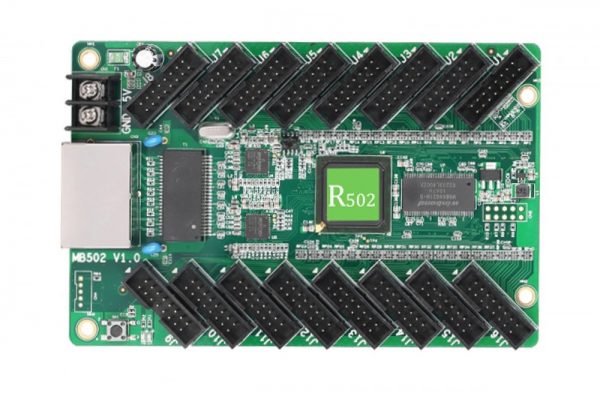

4. Data interface description:
①：Power Port: 4V-6V
②：Gigabit Port: Connected sending card HD-A601/602/603 or HD-C10/C30/or HD-A30/A30+ etc.
Two Ports is same
③：Testing button: after adjusted display working normal, then press by sequence, it come out color red 、green、blue、white、slash.(Note: just software saved parameter same with display screen, and pull out the Network cable, Then press the testing button is affective)
④：Light D1 normal status is flicker, showed controller working normal；
Light D2 normal status is flicker fast, showed recognized the Gigabit and receiving data.
⑤：16 PORT of HUB75B: Connected LED module Port.
