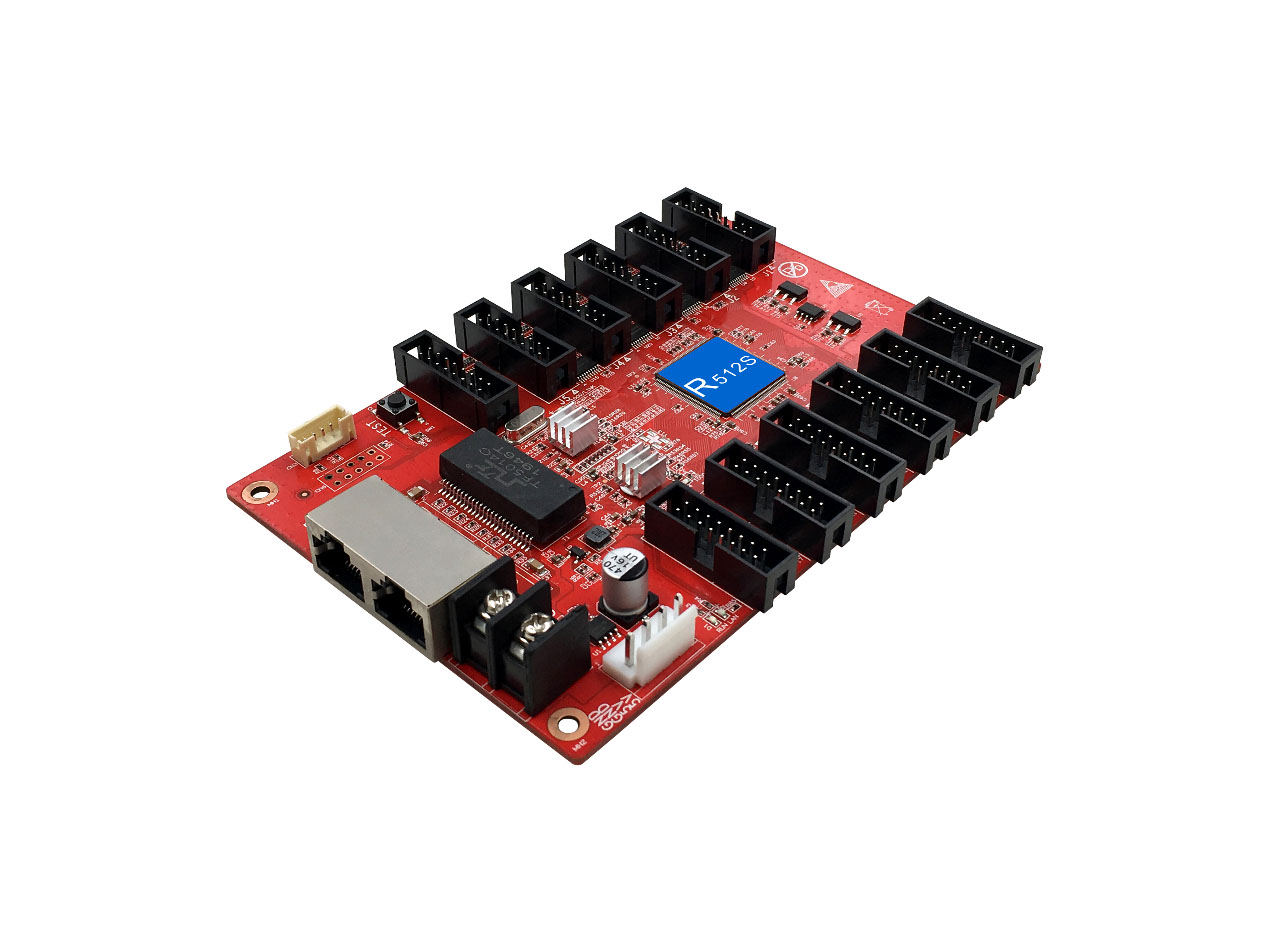

HD-R512S is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.

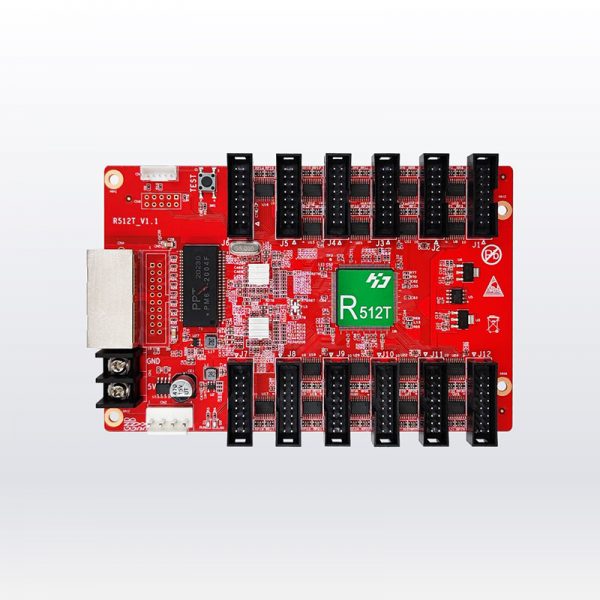

HUIDU HD-R512T LED Display Receiving Card Features：
Integrated with 12 lines HUB75E port
Support regular chips and PWM chips
Support static module, any scan mode within 2~64 scan
Support data group exchange and data group offset setting
Smart settings, draw points, trace points, etc.
Support multi-card cascade, arbitrary order
Recommended loading range: 128*512/ 128*768
Specification
|
With sending card
|
Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series.
|
|
Module type
|
Compatible with all common IC module, supported most PWM
IC module.
|
|
Scan mode
|
Supports any scanning method from static to 1/64 scan
|
|
Communication
method
|
Gigabit Ethernet
|
|
Control range
|
Recommend：65,536 pixels (128*512)
Outdoor module width ≤256, Indoor module width ≤128
|
|
Multi-card
connection
|
Receiving card can be put in any sequence
|
|
Gray scale
|
256~65536
|
|
Smart setting
|
A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen
unit board
|
|
Test functions
|
Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
|
|
Communication distance
|
Super Cat5,Cat6 network cable within 80 meters
|
|
Port
|
5V DC Power*2,1Gbps Ethernet port*2, HUB75E*12
|
|
Input voltage
|
4V-6V
|
|
Power
|
5W
|
Further Information:
HD-R512T Specification V1.1
