A-200FAR-5PH Full Color LED Panel Video Wall 5V40A Power LED Display Screen Digital Sign 100W 200/240VAC Input Power Supply

Product Description:

A-200FAR-PH:
Efficient and energy-saving – up to 88% efficiency
Wide voltage input – adaptable to various power grid environments
Silent – fanless design
Safety protection – short circuit/overload protection
Good heat dissipation – aluminum shell for heat dissipation
Low electromagnetic interference – EMI Class A
High reliability -100% full load aging

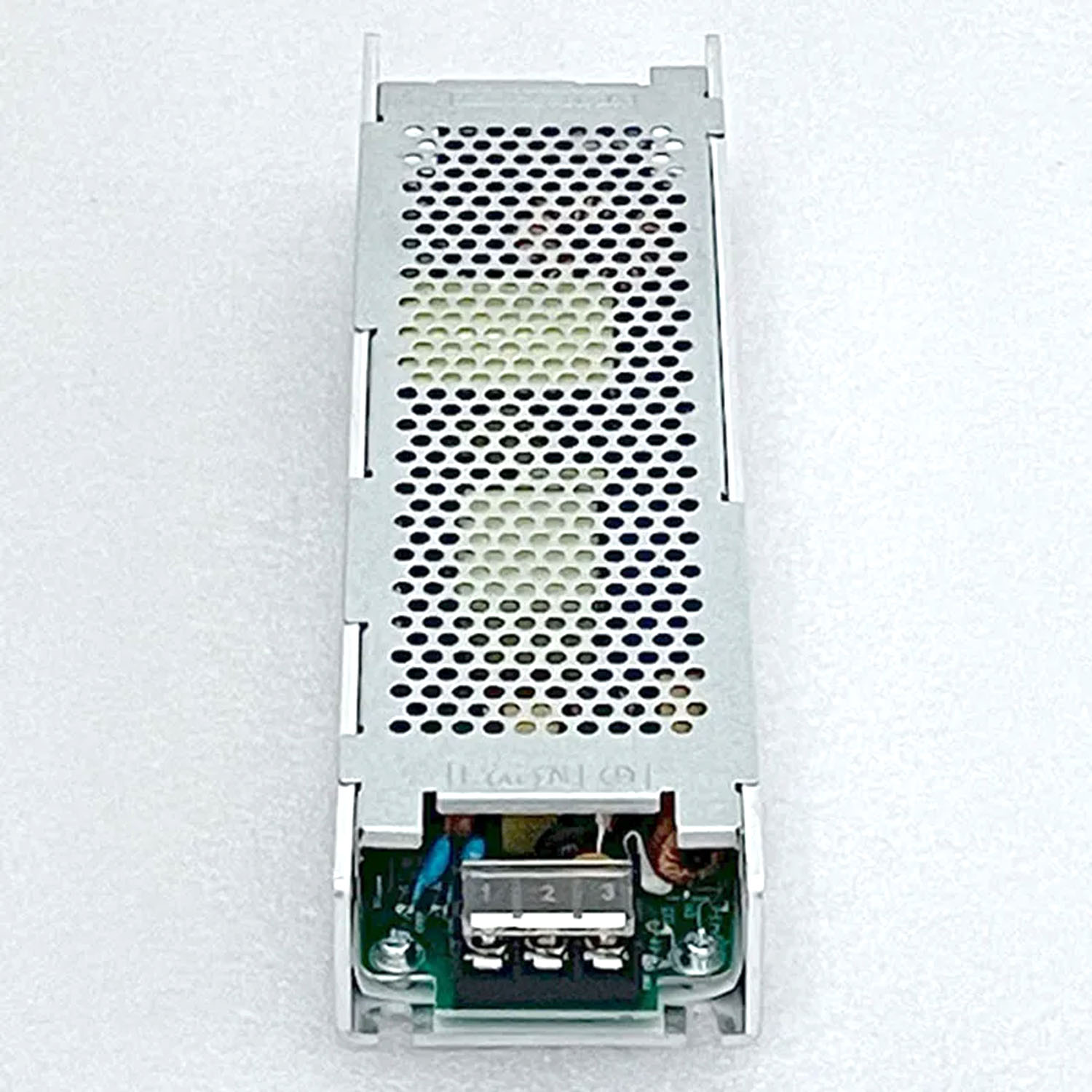

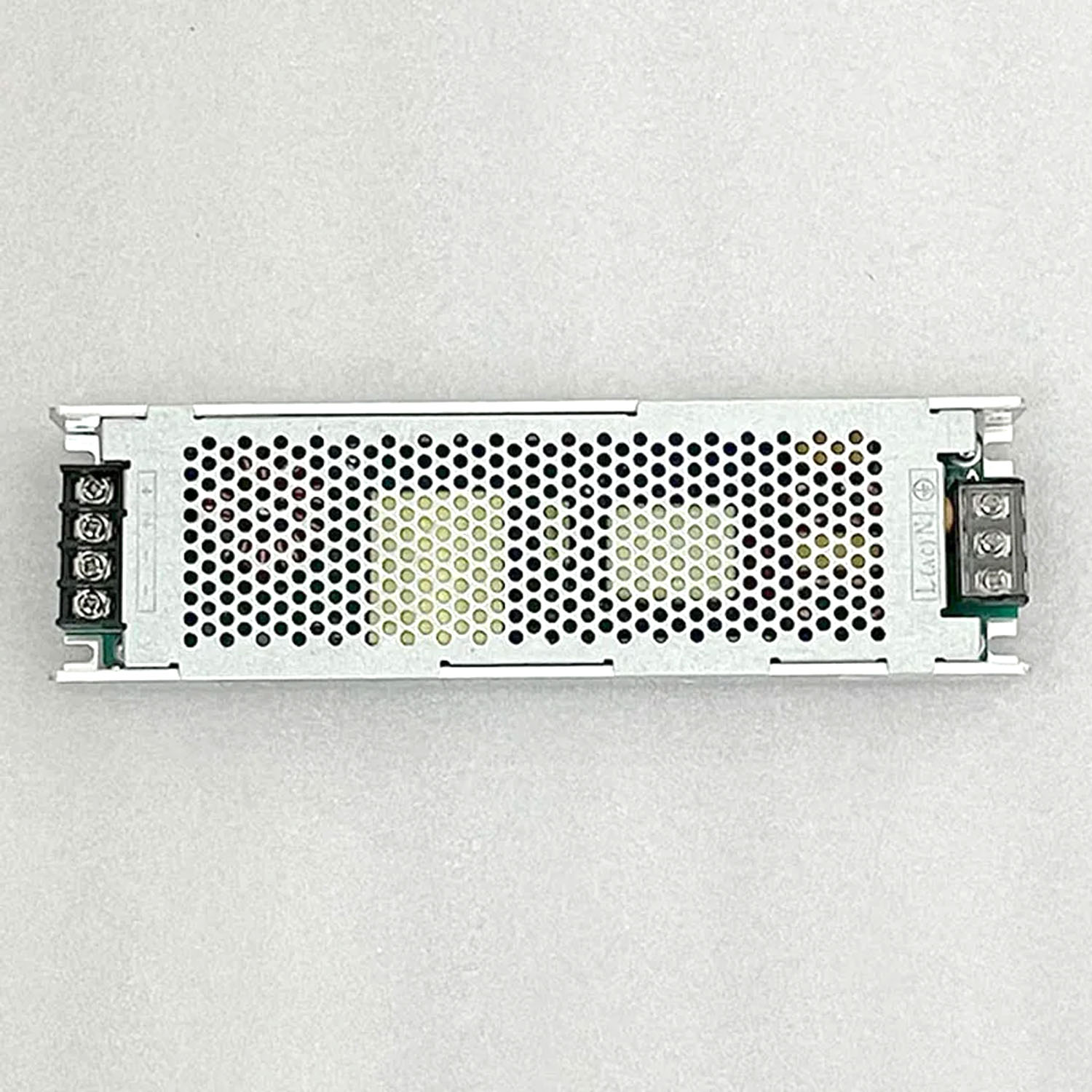

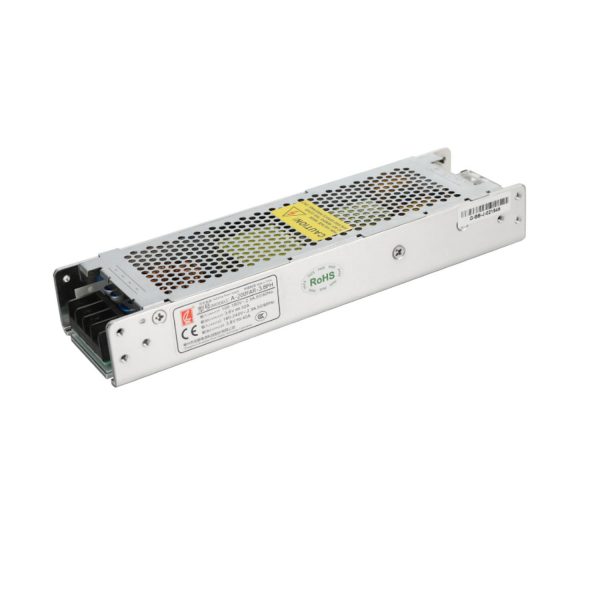

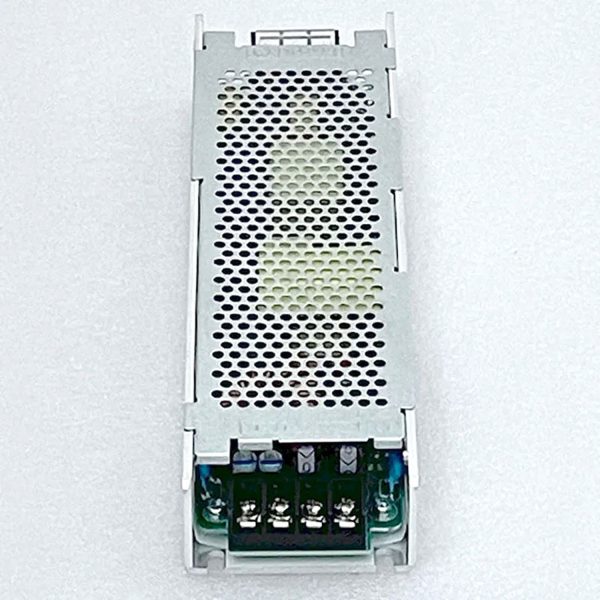

The A-200FAR-PH series product is a 200W fanless LED display driver power supply with PFC function design. The input voltage range is 90-264VAC, and the output voltage includes 3.8V, 3.9V, 4V, 4.1V, 4.2V, 4.3V, 4.4V, 4.5V, 4.6V, 4.7V, 4.8V, 4.8V, 5V, etc. It can be used in LED display fields such as LED displays and LED indicator lights. This series of products is designed with ultra-thin PFC function, with a height of only 31mm, and can adapt to various box size requirements. The ultra-high efficiency, compact shell design, and good heat dissipation ensure that this series of products can work stably for a long time.

Application areas: LED small pitch screens, LED transparent screens, LED glass screens, etc

Product certification：3C，CE
