$1,461.10

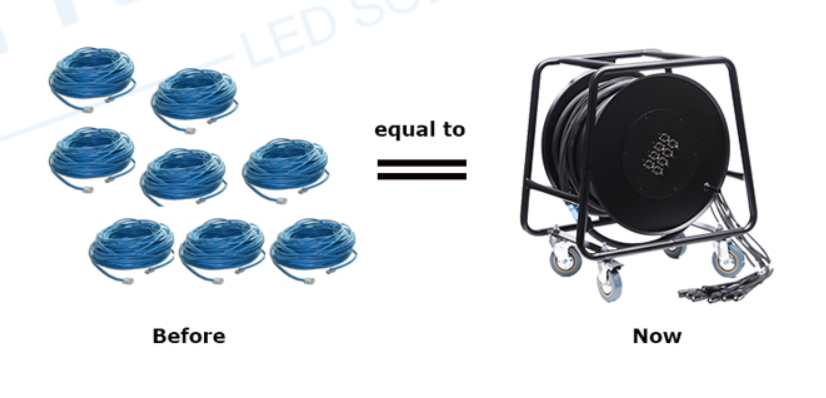

6 Channel CAT6 SFTP multi-cable RJ45 network cable with double-layer shielding and ROSH certification
–Elastic PVC outer sheath,each channel adopts aluminum foil+ copper net independent shield;Precise control of skein,effectively offset the signal crosstalk between line pairs,reduce attenuation.
–.Return loss,improve the electrical performance of the cable,and resist the electromagnetic wave interference,to ensure high-speed and stable signal transmission.
–The finished network cable can pass Fluke test,stable crimp,100% test,reliable performance,is the best assistant for your screen rental.
（1） Cable Spec.
Conductor:CAT6 SFTP 23AWG 1/0.55CU*4P+AB (64/0.10TCAL)
Jacket material:PVC,OD 6.3±0.2mm. Cable colour:Black
（2） Connector :A&B:RJ45 (8P8C) Male Type. Insulation: clear ployester
Contacts Brass,Gold plated 3u‘.
Shell:Nickel plated
-Connector must have no any damage or terminal oxidation.
（3） Over mold: PVC,Black
-Must have no fashes,shrinkage,discoloration or any obvious visual defects.
（4） Parameter Seting: UT8080M
（5） All componets are ROHS complaint.
（6） Passed 100% open and short test.
（7） Packgae:PE bag
（8） Wring
|
Mechanical data |
||
|
Composition of cores |
8×CAT6 |
|
|
Overall diameter (mm) |
Ø23.0 Tolerance overall diameter,+/-0,5mm |
|
|
Diameter per element |
Ø6.3mm, +/- 0,2mm |
|
|
/Conductor diameter (mm) |
1×Ф0.55mm |
|
|
Composition of conductor |
4×4×2, Bare annealed Copper |
|
|
Conductor insulation |
HDPE Ф1.0±0.1mm Pair1 (W/BL-BL) Pair2 (W/O-O) Pair3 (W/G-G) Pair4 (W/BR-BR) |
|
|
Filler |
Cotton Strand |
|
|
Single Cat6 Jacket |
Gray |
|
|
Single Cat6 Braid Screen |
Ø0.1×64 Tin-plated Copper |
|
|
Single Cat6 aluminium foil shield |
0.025mm |
|
|
4 Cat6 Jacket material and overall Jacket material. |
PVC with restricted Substance: Cadmium:< 5 PPM (‘Cadmium free’) Lead:< 50 PPMMercury:< 2 PPM Chromium:Not contained |
|
|
Overall jacket colour, surface characteristic, appearance |
matte black – anthracite colour, not shiny, not stickyModerate smell. |
|
|
Cable Printing |
8CHANNEL CAT6 SFTP MULTI CABLE |
|
|
Workingtemperature |
mobile |
-5°C to +70°C |
|
fixed |
-20° to +70°C |
|
