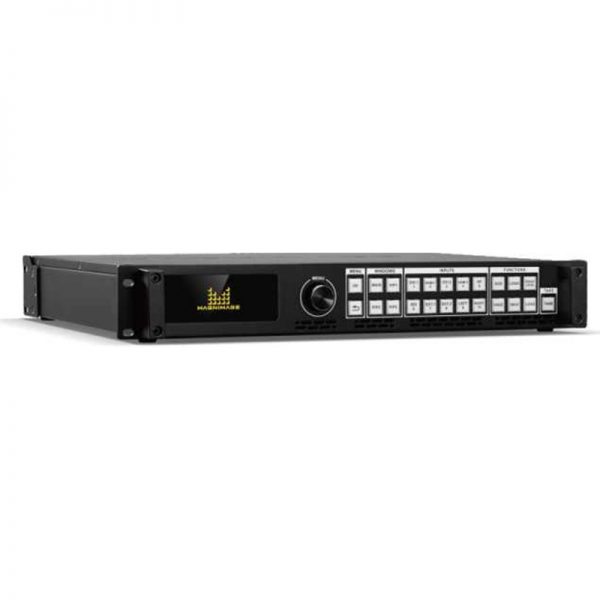

Magnimage 4K Series LED-760H LED Video Processor

LED-760H, a superior approach to better visual performance for LED walls. It is a 4K x 2K/60Hz capable video processor for 4 screen splicing. With EDID and customize output management, it delivers high quality pixel-to-pixel display via its userfriendlycontrols. It is an ideal choice for multi-media hall, multi-purpose room, theater, studioand showroom.
Supporting all kinds of input ports, it outperforms competitor products in terms of loading capacity and broadband utilizing rate (the up-processes width is 15360, and refresh rate reaches upto 120Hz. Also, 16 selective built-in resolutions allow userto scale and match the real size of LED walls.
Input ports include DVIx2, H DM 1×2, DPxl(4K). For extended inputs, user can choose 2 2K ports from VGA, DVI and SDI or 14Kport from DP1.1 and HDMI1.4.
It accepts network linking, USB linkingorRS232linkingfordifferent control demands.

4 screens splicing in 1 processor
Thanks to customize input/ output resolution and superior synchronization, LED-760H can realize multipleinput pixel-to-pixel splicing or single input amplification.

Customize input/output resolution
With EDID management, LED-760H can customize the input resolution of DVI, HDMI and DP. There are 18 available fixed resolutions and customize output resolution function. In orderto adjust pixel-to pixel display from different size LED walls, user can also set an accurate resolution.

4screenssplicingin 1 processor Horizontal splicing, vertical splicing, same size splicing, or different size splicing.

4 independent outputs
Maximum 8 inputs, LED-760H can be used as matrix of 8 inputs and 4 outputs. It can also control 4 different screen with independent content. Any input can be quickly switched to any output without black or signal break-off.

4 layers output
In the non-splicing mode, each portisableto display 4independent pictures.Inputsignal,sizeand position of these 4 pictures can bechanged.
