First we prepared 1pcs LED module ，ribbon cable，Wlan cable,USB cable，HDMI to DVI cable，LINSN LED receiving card and sending card，LED Power supply and computer
Now let’s starting
We first connect the HDMI cable
USB cable
When making RCG files
It is best not to use the video processor at the same time
It is easier to connect directly to the sending card
Connect the receiving card to the network port of the sending card

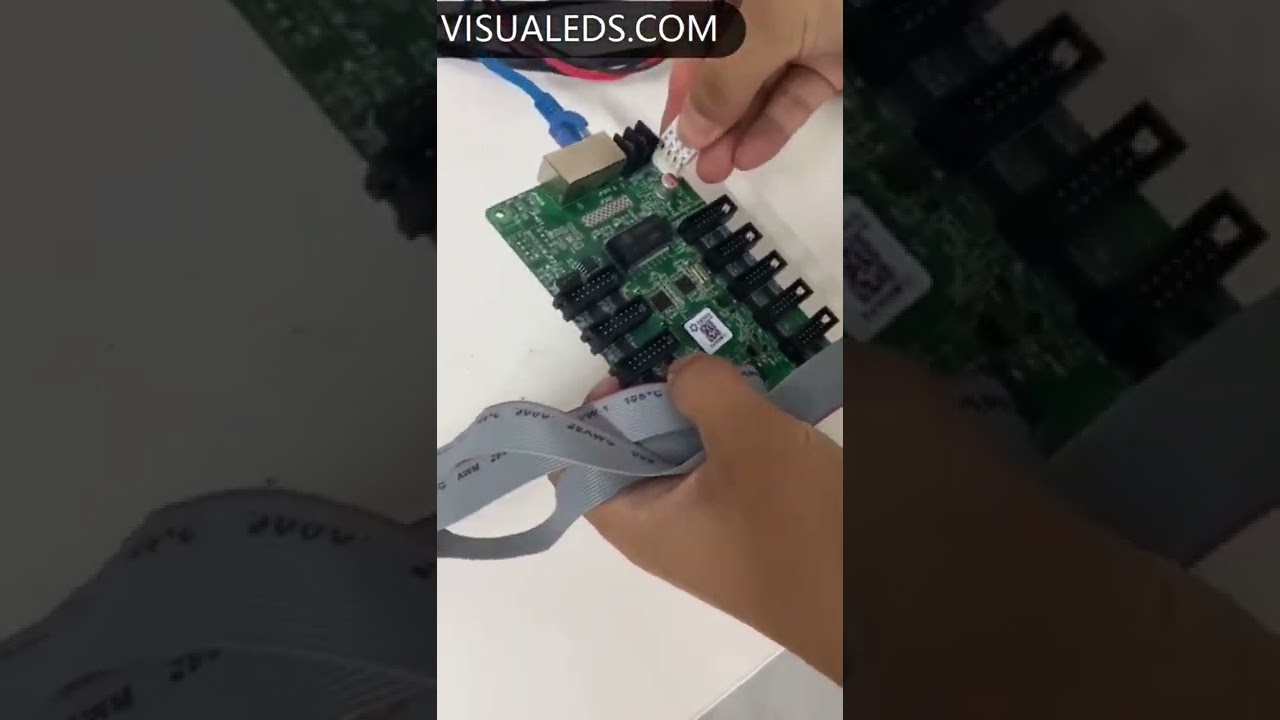

Now let’s connect the ribbon cable
When the ribbon cable is connected to the receiving card, it is best to connect to the J1 port
module here
The module has two ports: input port and output port
When connecting, look at the arrow pointing
Arrow starting point: right up
let’s connect the sending card and LED power supply
use this sip
Then connect the receiving card to the power supply
all cable is connected
let’s start debugging
Open LINSN (Settings) software
Since we have already connected the cable, it shows that the cable is connected here
Sending card shown here
Click Display Configuration – Send Configuration
Please keep the same resolution as your computer
1920*1080
My computer resolution is 1920*1080
Under normal circumstances, only need to set here
save to sending card
Click to receive settings
